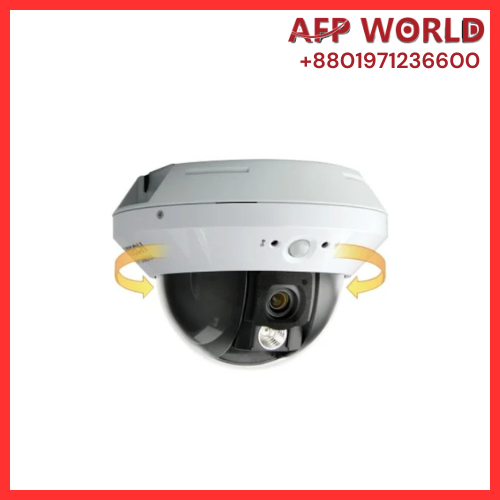

Item CCTV Camera Model ✅ AVM503 Brand Avtech CCTV Type Fixed Sensor 1 / 2.8” 2MP Sony CMOS image sensor. White Balance Auto Tracking White Balance Lens f3.8mm / F1.5mm. Video Resolution CIF / 1080P Signal System LAN. Day / Night Yes Connectivity IP Camera. CCTV Housing Dome Power Supply 12V / 1A (±10 Percent) Min. Illumination: 0.1 Lux / F1.5. 0 Lux (LED ON) S / N Ratio: More than 48dB (AGC off). Electronic Shutter: 1 / 10,000 to 1 / 7.5 (Slow shutter). Lens Viewing Angle 83.2 Degree (Diagonal). 73.2 Degree (Horizontal). 42.8 Degree (Vertical) Pan Angle 316 Degree ( /- 158 Degree) IR LED: 1 Unit IR Effective Range: Up to 15 meters IR Shift: Yes PIR Sensor Detection Range 76 Degree wide angle with up to 5m long distance at 2.5m height (under 30 Degree) IRIS Mode: Yes AGC: Auto WDR: Yes POE (Power-over-Ethernet): Yes (IEEE 802.3af) External Alarm I/O: Yes (1 input / 1 output) Operating Temperature: 0 to 40 Degree Power Source : Power consumption (±10 Percent): 8.75W Max (PoE) 8.75W Max (PoN) 7W Max (DC Adapter) Current Consumption: (±10 Percent) 580mA Video Video Compression: H.264 (Main Profile) / MJPEG Audio line In / Out: Yes Frame Rate: 30 / 25fps Multiple Video Streaming: 4 (H.264, MJPEG) Network Number of Online User: 1 to 10 Supported Protocol DDNS / PPPoE / DHCP / NTP / SNTP / TCP/IP / ICMP / SMTP / FTP / HTTP RTP / RTSP / UPnP / RTCP / IPv4 / Bonjour / DNS / UDP / IGMP / QoS / SNMP LAN Speed: 10 / 100 Based-T Ethernet LAN Port: Yes Security Multiple user access levels with password IP address filtering Digest authentication Remote Access Internet Explorer on Windows operating system EagleEyes on iPhone, iPad & Android mobile devices Others Mobile Surveillance: Android / iOS ONVIF Compatible: Yes (Profile S) MicroSD Card Slot: Yes (up to 64GB) Event Notification: FTP / Email / SMS External Alarm Device Connection: Yes Digital Pan / Tilt / Zoom: Yes Motion Detection: Yes RTC (real-time clock): Yes Minimum System Requirements AGP graphics card, Direct Draw, 32MB RAM Windows 7, Vista & XP, DirectX 9.0 or later Internet Explorer 7.x or later 2GB RAM
