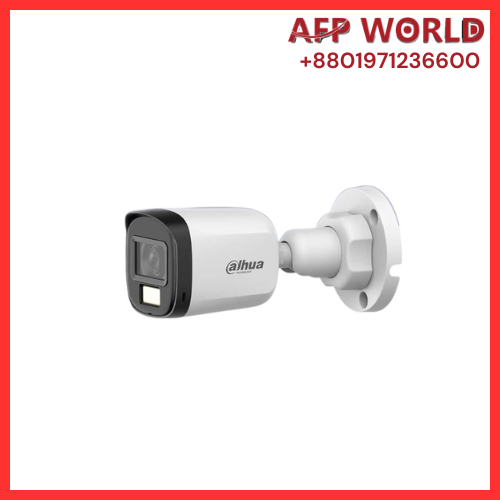

Dahua DH-HAC-B1A21P-U-IL Full Specification Item CCTV Camera Model ✅ DH-HAC-B1A21P-U-IL Brand Dahua CCTV Type Fixed Sensor 2 MP CMOS Lens 2.8 mm, 3.6 mm, 6 mm. Video Resolution 1080p. Signal System Coxial Day / Night Color IR 30M / 98.43 feet Connectivity Standard Waterproof / Dustproof Yes CCTV Housing Bullet Power Supply 12 VDC Camera Scanning System: Progressive Electronic Shutter Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s Min. Illumination 0.02 lux at F2.0 (Color, 30 IRE) 0.002 lux at F2.0 (B/W, 30 IRE) 0 lux (Illuminator on S/N Ratio: 65dB. Illuminator On/Off Control: Auto; Manual. Illuminator Number: 2 Warm light, 2 IR light Angle Adjustment. Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Mount: M12 Max. Aperture: F2.0 Iris Control: Fixed Field of View 2.8 mm: H: 100°; V: 54°; D: 117° 3.6 mm: H: 80°; V: 43°; D: 94° 6 mm: H: 43°; V: 24°; D: 50° Close Focus Distance 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) 6 mm: 2.4 m (7.87 ft) Video Day/Night: Auto(ICR)/Color/B/W BLC: BLC; HLC; DWDR. WDR: DWDR. White Balance: Auto, Area white balance. Gain Control: Auto, Manual. Noise Reduction: 2D NR. Illumination Mode: Smart IR&WL; WL Mode; IR Mode. Port Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port. Audio Input: One channel built-in Mic. Power Consumption: Max 3.3W (12 VDC, LED on) Structure. Casing Material: Plastic. Dimension 146.1 x 70.0 x 69.8mm 5.75 x 2.76 x 2.75″ Net Weight: 0.15 kg Gross Weight: 0.23 kg Installation Wall mount Ceiling mount vertical pole mount Dahua DH-HAC-B1A21P-U-IL Description This Dahua DH-HAC-B1A21P-U-IL is part of the famous Cooper series bullet camera that has a compact design and offers a high quality image. This camera has horizontal 1920 and vertical 1080 resolution which offers good video image quality. It has built-in MIC that can accurately capture sound from a wide range of cameras. This Dahua camera has an illumination distance of 30 meters and a 3.6 mm fixed lens.
